TRANSLATORS & GATEWAYS

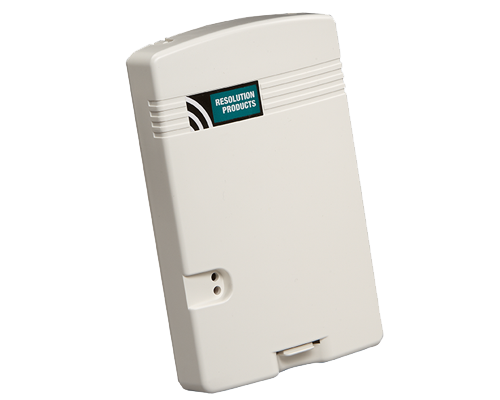

Translators
OVERVIEW
Features:
• Compatible with any hardwired sensors going to the various wireless panels.
• 8 Hardwire loops with end-of-line resistor detection.
• Unique wireless ID (or loop) for each zone.
• Unique wireless ID for the device itself.
• Transmit diversity for long reliable range.
• PIR powering (via external supply).
• External 12VDC power supply. [Sold Separately]
• 3-5 year backup on AA batteries (included).
• Device low battery detect.
• Device tamper detect.
• 4x6x1 inches.
Compatibility
OVERVIEW
Features:
• Compatible with existing burglary sensors going to new panels being installed from other manufacturers.
• Translators will enroll: Keyfobs, DWS, Glassbreaks, PIRs, etc.
• Translators DO NOT translate life saving devices i.e. Smoke, CO, or high heat sensors.
• Translators DO NOT translate older frequencies, such as the DSC® 900MHz wireless.
• Translates each sensor’s alarm, supervisory and trouble signals to panel.
• Dual antennas for Receive and Transmit diversity ensure reliable range.
• External 12VDC power supply required. [Sold Separately]
• 72 hour backup on 3 AAA batteries (included).
• Separate ID for supervision of Translator’s tamper, power supply and low battery.
• 4x6x1 inches.
Compatibility
OVERVIEW
Compatible with:
• DSC, Honeywell, Interlogix and 2GIG panels
• DSC, Honeywell, Interlogix, 2GIG and Napco sensors
• Hardwired Translator can be used with Helix!
Features:
• We have reduced the number of Translator and Repeater SKUs from 19 down to 2.
• Field configurable RF. Just set the dial to the brand of sensor and the brand of panel being installed. You no longer need a specific model set to the specific manufacturers frequency.
• ower supply and rechargeable battery back-up is now included
• The wireless Universal Translator can operate as a repeater for all supported brands
• UL Compliant
Gateways
OVERVIEW
Compatible with:
• GE® Concord 4, Simon XT and XTi
• CADDX NX Panels
• HONEYWELL® Vista 15p, 20p and 21IP, Versions 4.0 & later
• Concord 4
• DSC® PowerSeries (PC580, PC1555, PC1555MX, PC1616, PC1832, PC1864, PC5010, PC5015, & PC5020)
Features:
• Connects panels to Ethernet modem or router
• Enables: Alarm Reporting, Interactive Control Functions, Ethernet data reliability, and Z-Wave Communicator included
RE920X – Ethernet/IP
OVERVIEW
Compatible with:
• GE® Simon XT and XTi
• CADDX NX
• Concord 4
• HONEYWELL® Vista 15p, 20p, and 21IP Versions 4.0 & later
• DSC® PowerSeries (PC580, PC1555, PC1555MX, PC1616, PC1832, PC1864, PC5010, PC5015, & PC5020)
Features:
• Connects panels to local WiFi Network
• Enables: Alarm Reporting, Interactive Control Functions, Ethernet data reliability, and Z-Wave Communicator included
• Click the link here to see a list of supported Z-Wave devices tested by Resolution Engineers!
OVERVIEW
Compatible with:
• DSC POWERSERIES
• HONEYWELL VISTA 15P, 20P, and 21IP
• NX
• CONCORD 4
• Napco P800, P801,P816,P1632
• SIMON XT & XTi
Features:
• Connects to the panel keypad bus
• Field switchable to support DSC PowerSeries, Honeywell Vista, NX, Napco or Concord 4.
• Enables both alarm reporting and interactive arming from smartphones.
• Optional Z-Wave card for added home automation features.
• Click the link here to see a list of supported Z-Wave devices tested by Resolution Engineers!
